Description
Product name:

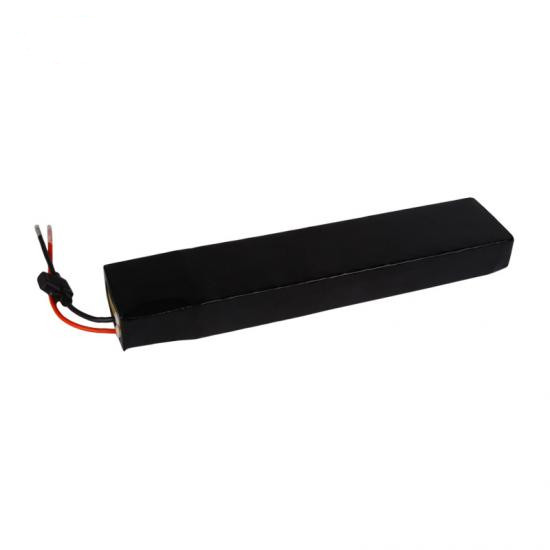

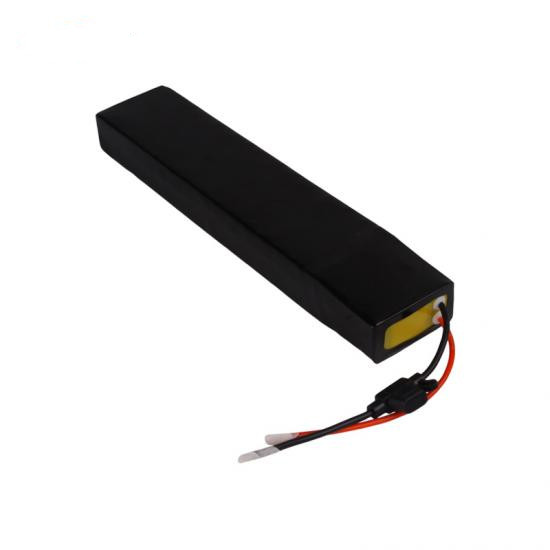

36V 14Ah Lithium Battery Pack For Foldable Light Electric Scooter
Specification:
| MODEL | OSN-INR35E10S4-3614Li |
| PERFORMANCE | |
| Rated Capacity | 14 Ah |
| Nominal Voltage | 36 V |
| Discharge Ending Voltage | 25 V |
| Charging Limited Voltage | 42 V |
| Recommend Charging Current | 3A-7A |
| Max. Charging Current | 20 A |
| Max. Continuous Discharging Current | 20 A |
| Max. Discharging Current | 40 A |
| Containing Cell | Samsung 35E |
| Cycle Life | 1000 cycles @85% DOD (dependant on actual DOD, usage & temp.) |
| Discharge Rate | 1C |
| Response Time | > 1ms |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (W*D*H) | 385*38*70mm |
| Weight | 2.05 Kg |
| Enclosure | Heat Shrinkable PVC |
| OTHER | |
| Operating Temperature | Charging: 0 to +45°C / Discharging: -20 to +60°C |
| Storage Temperature | -20 to +60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Warranty | 3 years |
