Products Description
Specification
Specification | |||
NO | Item | General Parameter | Remark |

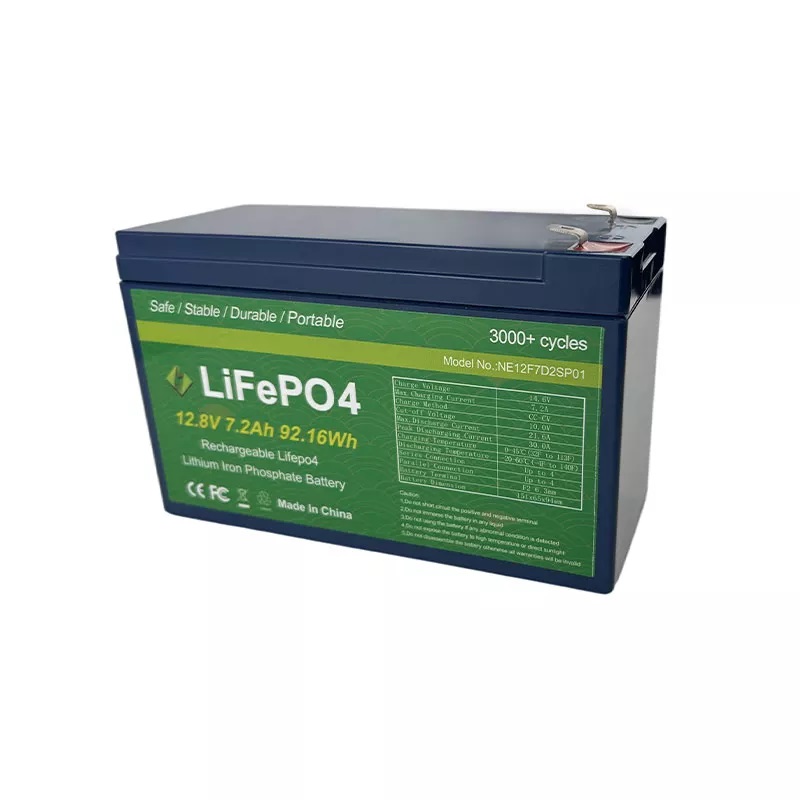

1 | Model | NE12F7D2SP01 | Single |
2 | Cell Type | 26650 Lifepo4 Cell | Cylindrical Cell |
3 | Standard capacity(@0.2C) | 7.2Ah | |
4 | Mininum Capacity(@1C) | 7.2Ah | |
5 | Rated voltage | 12.8V | 3.20V(Single Cell) |
6 | Charging voltage | 14.6V | 3.65V(Single Cell) |
7 | Charge Method | CC-CV | |
8 | Cut-off voltage | 10.0V | 2.50V(Single Cell) |
9 | Standard charge current | 3.6A | @0.5C |
10 | Charging Time | 3.0hours | @0.5C |
11 | Max Continuous discharge current | 21.6A | @3C |
12 | Peak discharge current | 28.8A | @4C 10seconds |

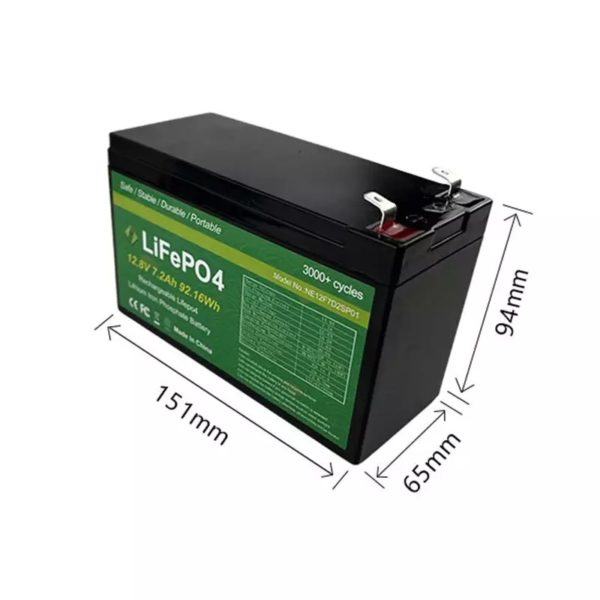

13 | Battery dimension | 151*65*94mm | |
14 | Total weight(Approx.) | About 0.9kg | |
15 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 45mΩ | |

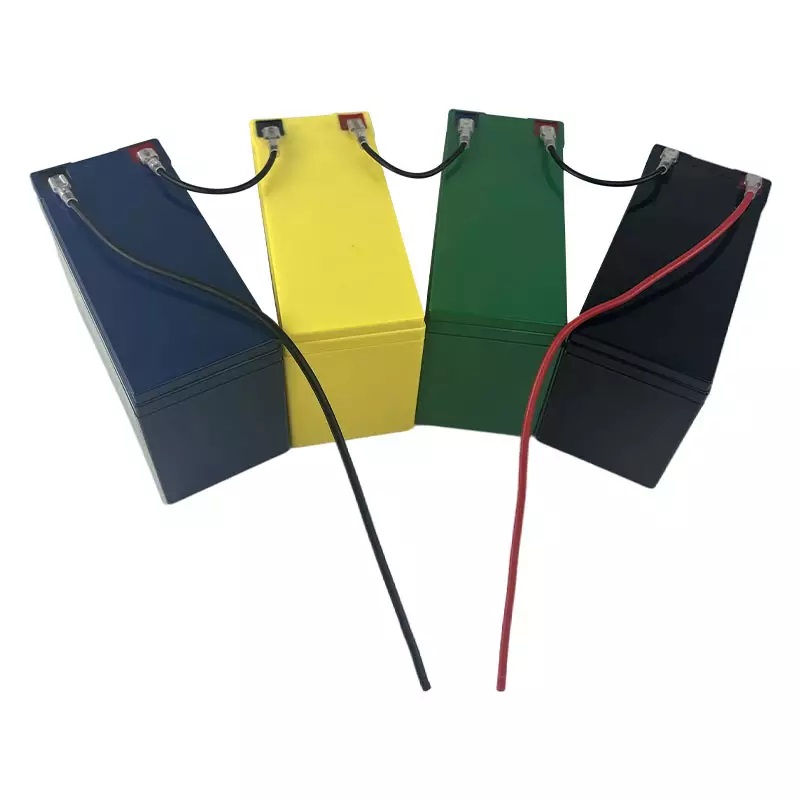

16 | Series Connection | Up to 4 | |
17 | Parallel Connection | Up to 4 | |
18 | Battery Terminal | F2 6.3mm | |
19 | (CC/CV)
Charge method (CC/CV) |
Standard | 0℃~45℃ |
discharge | -20℃~60℃ | ||
storage | -20℃~45℃ |
Details Images
By connecting a Bluetooth or WIFI module, there are a multitude of possibilities for manufacturers and end users. This integration of a Bluetooth or WIFI module in the battery (a key part of a battery-powered application) not only allows access to data and parameters in the battery but also to information in the end application and the charger. The processing of service operations also becomes child’s play.
EBAK developed an app for Android and iPhone mobile phone, with which all relevant information from the battery can be read, displayed and evaluated. As required, access to battery and end device is possible. Using this app, the live data from the battery can also be graphically displayed and logged. The app can be provided with access rights or restrictions. Software can be tailored for your specific application in order to adapt the advantages of the system in devices already available on the market.
Features
- Lighter in weight, heavier on power
- Excellent cycle life. More than 3000 cycle times and there is a 3-year warranty
- Deep cycle. can be discharged to 100% depth of discharge.
- Maintenance free
- Safer performance. Our batteries have passed different safety tests.
- Blue-tooth function and heated function can be added.
Built in BMS overall protection
- Over-charge protection
- Over-discharge protection
- Over-current protection
- Over-load protection
- Temperature protection
Battery Testing & Quality Control:
EBAK utilizes first article inspection practices as well as on-line inspection, depending on the complexity of the battery. Every battery is 100% tested for functionality before it is submitted to final inspection. This ranges from a voltage and polarity test for batteries to pull testing for any battery with wire leads and connector, and to a charge / discharge system test for rechargeable batteries. Every battery is functionally tested, especially batteries containing communication circuitry, to make sure that the battery is fully operational. A final QC inspection is performed before the battery is packaged for shipment.Whatever the customer needs is for quality verification; Superpack can meet or exceed them.
